These WolfPack BYO 4K 60 Hz AV Over IP Splitter sends 4K 60 Hz signal up to 450 feet using a single CAT6/7 cable to up to an unlimited number of TVs. They are configured with one 4K 60 Hz Transmitter (TX), and multiple 4K 60 Hz Receivers (RX), and an appropriate size Ethernet Switch(s).

What makes these BYO 4K 60 Hz AV Over IP Splitter so unique are:

One video or picture is sent to dozens of TVs 100s of feet away.
It will individually allow you to turn a TV OFF & ON with one tablet button.
It will individually allow you to turn all TVs OFF & ON with one tablet button.
You will see the video or picture on the tablet before you send it to the TVs.
It will be selectable to which TV it will go to controlled by a tablet or Windows PC
Those TVs that video is not sent to will show black, or show their screen saver, if so equipped.
It can easily be upgraded to a matrix switch by adding another transmitter.
Using cascaded ethernet switches it can go to multiple floors in a building over CAT6.
Using cascaded ethernet switches it can go to multiple buildings connecting by fiber.
Using VLAN it could be integrated into the facilities local area network.

This unique LAN Splitter concept can be used in factories, training areas, lunch rooms, schools, malls, and other places where one picture or video is selectively sent to multiple TVs hundreds of feet away.

BYO 4K 60 Hz AV Over IP Splitter Key Elements:

Wireless Real Time Video iPad Preview: Preview the source video on an iPad before it sent it to the TVs. That means your iPad will show, in real time, the video or picture that are on. If you have a PC showing real-time videos or pictures on the iPad, you then can send them, if you choose.
Apps & Windows Control: This LAN based HDMI Matrix Splitter allows the one input to be routed to up to an unlimited number of TVs all controlled with an iPad and Android App, wall mounted touchscreens, and a Windows PC. You can even turn all the TVs Off & On with one iPad button.
Cascadeable Ethernet Switches: The ethernet switches be cascaded and still act as a one large LAN splitter. This is great for multiple floors, multiple rooms, and even multiple buildings by using fiber between them. All the many TVs will be in perfect synch with each other.
VLAN Support: Our LAN based HDMI Matrix Splitters can be installed on your existing LAN as they have VLAN capability. Our VLAN HDMI Splitter System uses VLAN technology to isolate and protect the HDMI signals from other traffic on your network. Devices on the same VLAN can communicate with each other as if they were on the same physical network, even if they are connected to different switches or routers.
Build Your Own (BYO) or Buy Pre-configured Systems: We offer two ways to purchase our systems, one is to BYO here, the the other is buying one of our preconfigured systems.

Compare our BYO 4K 60 Hz AV Over IP Splitter Features vs Others:

In stock
Wireless Real Time Video Preview
iPad shows live source video
Supports a VLAN
AV Over IP w/POE Technology
iPad button turns TVs OFF & ON w/CEC
WIFI iPad & Android App control
4K 60 Hz video over 1G Network Switch

Bandwidth is only 7 Mbps
Latency is only 80ms
One In to Many Out
Windows software control
Unlimited Save & Recall presets
Plug & Play (DHCP IP address)
Supports UI custom control
IP controller for 3rd party control

3rd party Open UDP commands
Extends HDMI to 450' w/CAT6/7
Supports the H.265 Protocol
SEC Security Compliance
HDCP 1.4 Compliant
Separate audio outs
Scalable Ins & Outs
Field Upgradeable to 48-TVs

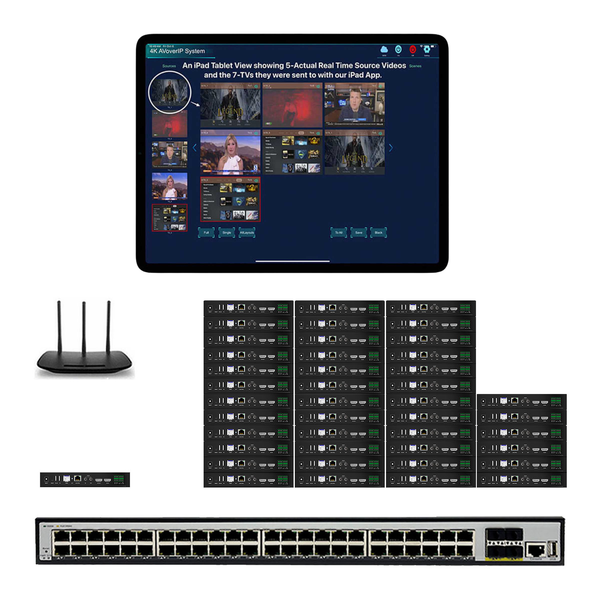

EXAMPLE: Build a WolfPack 4K 60 Hz 1x28 AV Over IP Splitter System:

1 - 4K 60 Hz AV Over IP Transmitters to 450'
28 - 4K 60 Hz AV Over IP Receivers to 450'

1 - Rack mount 48-Port 1G IGMP Ethernet switch
1 - Wireless iPad Control & its Ethernet switch

Overall, these WolfPack 4K 60 Hz AV Over IP Splitter Splitter Systems are a powerful and versatile system that can be used in a variety of applications. It is a great choice for businesses, schools, sports bars and churches that need to distribute one high-quality video and audio to multiple locations.

4K 60 Hz HDMI TX or RX Over IP Specs:

Zero configuration as it's plug and play
Resolution scaling with PC software
OSD function for fast building the video wall
4K 60 Hz video over an 1G Switch
Supports scalable input & output configurations
Field Upgradeable
iPad & Android Tablet not Included
HDMI 2.0 and HDCP 2.2 Compliancy

POE or can be powered using provided power supply
Plug and play using DHCP for the IP settings
PC Software for IP address, video wall, EDID etc settings
Renaming of the sources and displays
Audio on TX & RX
EDID preset/learning
Low latency is about 50 ms (Low latency mode) & about 250 ms (High quality mode)
iOS & Android App & PC Software control & preview function

Resolutions Supported:

640 x 480@60Hz, 480p@60Hz
576P@50Hz, 800 x 600@60Hz
1024 x 768@60Hz, 720p@50Hz
720p@60Hz, 1280 x 800@60Hz
1280 x 1024@60Hz, 1366 x 768@60Hz
1400 x 1050@60Hz, 1440 x 900@60Hz
1680 x 1050@60Hz, 1920 x 540@60Hz
1080p@24Hz, 1080p@25Hz
1080p@30Hz, 1080p@50Hz
1080p@60Hz, 4K@30Hz

Why not BYO 4K 60 Hz AV Over IP Splitter Preview today?

IP Control Box Operation Guide

Link to Apps and Software

iPad APP control for this AV over LAN System

AV over LAN System Installation Cage Assembling Guide

Why not buy a BYO 4K 60 Hz AV Over IP Splitter today?

WolfPack POE LAN Software and Apps

XView Software

Why not BYO 4K 60 Hz AV Over IP Splitter today?

Click here for the iOS APP Link

Click here for the Android APP Link

XView Software

Plug-and-play PC software (AVIPlite)

Plug-and-play Android APK (AVIPlite)

PC configure, upgrade & control software (XView)

Customize control UI software (EditTool)

Customized control UI APK (DVSTool)

Why not Own BYO 4K 60 Hz AV Over IP Splitter today?

Q: Can I use my own ethernet switch?
A: Usually, if it meets the specs:

1G bandwidth
Support IGMP snooping
Support multicast
Support fast-leave
Support POE

We suggest you get the complete system from us though as if there are any issues our support may be diminished. We will do our best to help you.

Q: Does the transmitter have an audio out?
A: Yes, the transmitter and receiver both have the 3-pin audio output.

Q: How do you test before you ship my system?
A: We put the products in the heating room for 12-hours for aging and have all the products turned On and the temperature of the heating Room set to 140 degrees. If anything fails we replace the failed unit and start the test over again.

Q: Is it a picture of a screen or full-motion video?
A: The preview of both sources and the Video wall is with full-motion video.

Q: Is there audio with the iPad Preview screen?
A: No, the preview on the iPad will not have the audio function.

Q: Can there be more than one showing?
A: For the source preview, it can show all the sources. The TV/Video Wall will be only showing the one that is selected.

Q: Is it a source only?
A: This preview is for both input sources, and the selected TV or video wall

Q: Can it be a TV at the destination?
A: Do you mean to have this preview function on the TV? If so, it's not able to do it, as the preview function is only available on the iPad APP, unless we wirelessly share/mirror the iPad to the Apple TV by airplay.

Q: Can there be text written below the picture or video?
A: We can add the OSD picture on any position of the TV. I am working on a demo video of this, but this will need to use the PC control software to add.

Q: If it is a satellite receiver can you change the channel?
A: No, we will only be able to preview the contents, but not able to change the channels

Q: If a DVD is playing do you see a picture?
A: Yes, we will see exactly the same contents as the DVD plays.

Can the Ethernet switches be cascaded and still act as a matrix?
A: Yes. The network switches can be cascaded and still act as a large matrix.

Q: Is it a WEB GUI control or PC software
A: It is a PC control software-based system for the configurations like CEC settings, resolution, IP addresses, etc . It also has an optional iPad app but does not have web GUI control.

Q: How do you setup the video wall?
A: For the video wall set up, it can done it in seconds using the iPad or Android app.

Q: How do you change the IP and MAC address of the transmitters and receivers?
A: You can set up the IP and MAC on the iPad app or PC control software, but we recommend using the automatic IP and MAC address, so it can support plug and play.

Q: The Transmitters and Receivers both have Audio out on the receiver can the audio be matrixed such as Receiver A sends audio out to Receiver B, if using the audio out?
A: The audio out on both the RX and TX are the corresponding audio with the video so its audio function is only an extract function from the video and is not able to do as an audio matrix.

Q: On the IP control box there are (2) LAN ports, would that be for 2 separate LANs?
A: We will only need to use the LAN 1 for the controlling & settings and for the broadcast version:

LAN1 (AV/POE): To connect with the network switch use the PC control software to control this system
LAN2 (C): To connect with the network switch this is used for a 3rd party to use the IP control this system

Q: What is it a distance with POE in and out?
A: With the POE, the input can up to 100m (330 ft) at 1080p@60Hz and the output also is 100m (330 ft)

Q: What is the distance without POE using the AC adapters in and out?
A: It is also the same distance as the POE distance as in and out both are 100m (330 ft)

Q: What type of UTP cable do you recommend?
A: As it's using for the video signal transmission we recommend using the STP 868B cable

Q: Can you use CAT6 - 5E - 6 and 7 and is there a difference in length of cables?
A: We did the tests here with the CAT6/CAT6/Cat6/Cat7 cable and the CAT6 and CAT7 are the best and can reach a distance of 450 feet with POE

Q: Please give us an explanation of when the large and small streaming resolutions would be used?
A: The highest resolution can up to 1080p@60Hz, the lowest resolution is 680x480@60Hz but that resolution can't support the IP camera decoding

Q: What does the PC Software do?
A: The PC control software is mainly for the resolutions, RS232, image adjustment and RX/TX IP settings

Q: Does the iPad control require a wireless router?
A: Yes, it will need a WIFI router connected in the same system

Q: In the diagram in the manual it shows the IP control box with only an Internet connection, does a PC plug into it?
A: Yes, the control PC uses a LAN cable connected to the same network switch

Q: You also recommend Managed POE switches, correct?
A: We tested on several POE network switches and so far both of the managed POE or the non-managed POE network are working well. But the managed network switch is more stable and it's fanless which is quieter.
